Scorecard metric detail pages

Scorecard metric detail pages provides an in-depth look at a metric to explore the data, and if required, export the data or set a watch.

Scorecards lets you progressively drill-down into your performance controls data to identify the source of any concerns or uplifts. As part of this, the metrics shown by interrogating the dashboards and breakdown dimensions (such as business unit or region) can be checked in more detail.

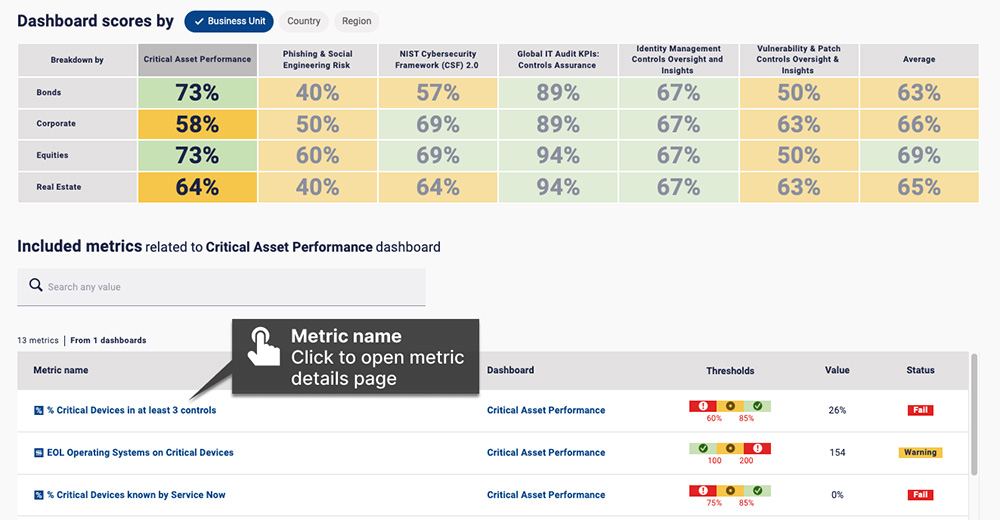

Selecting dashboards, dimensions, or scores at the intersection of the two, filters the Included metrics table to show the corresponding source metrics.

Click on any of the metrics to open. the metric detail page.

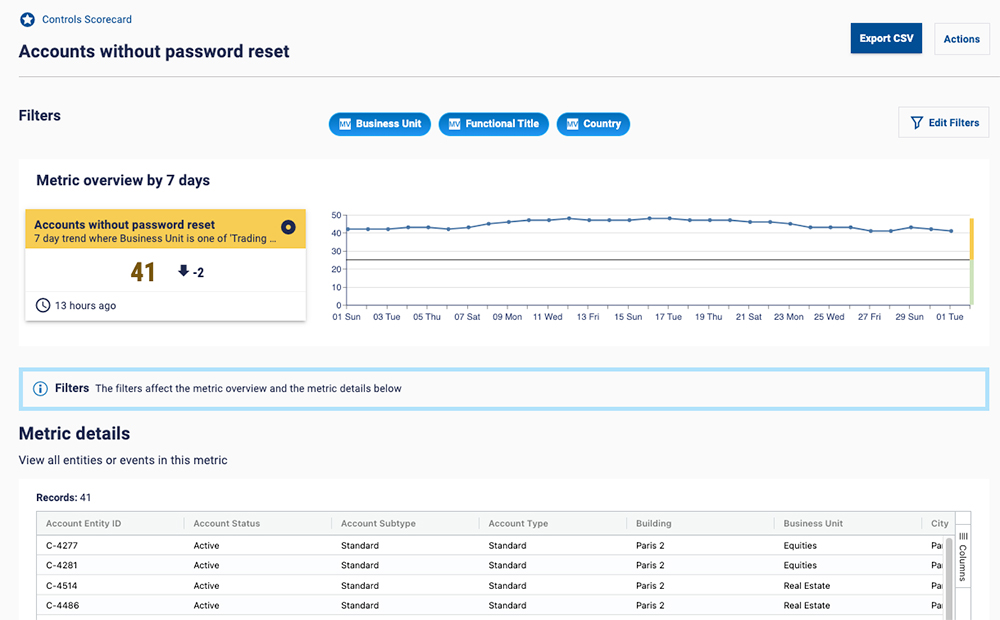

Metric score and trend

At the top of the page you can see:

• Metric value: The metric panel with details including status color, score, and points change over the past seven days.
• Value trend: A trend chart is drawn for the metric value over the past month.
  The trend chart lets you review performance and gives you a clear indication of whether the metric is trending in the right direction.
  The trend chart includes a color bar on the right to show threshold range for the metric that are covered by the vertical axis.
  A horizontal line is drawn across the chart to show a threshold boundary.

Metric details table

The Metric details table lists all entities or events that are used by the metric to derive its value.

As a standard Panaseer table, you can sort columns and select columns for display.

Filtering the metric detail page

You may want to focus your inspection on specific sections of the data that are of interest, for example for a particular operating system, or business unit, or country.

The Scorecard metric detail page supports filtering of all columns (fields) associated with the metric.

To filter the metric:

1. Click the Filters button to open the filter dialog.
2. Select a column from the list.
   You can search for a column to narrow the list.
3. Configure the filter using the available options. These change according to the data type of the selected column.
4. Repeat steps 2-3 for additional columns.
5. Click OK to apply the filter.

The filter columns appear in blue chips in the Filters row near the top of the page.

To edit or clear all filters:

1. Click the Edit Filters button.
2. To remove any active filters. click Clear all filters.
3. To edit specific column filters, select the column and change the filter.

Refer to Filtering data in dashboards, metrics, and inventories for more information.

Add a watch to the metric

From the Scorecard metric details page, you can add a watch to the metric to trigger notifications if the metric exceeds or drops below a specified value.

To set up a watch on the metric click Actions > Create a Watch.

For information on how to configure a watch see Creating a Watch.

Export metric data as CSV

If you need to work with metric data offline, you can export the Metric details table to a CSV file. The data is

Export metric details as PNG

You can export the metric value panel and trend chart as a PNG file to use for sharing and review.

Click Actions > Export as PNG to save a PNG to your local drive.
