When raw data volumes change unexpectedly, it’s often impossible to tell whether the cause is a connector issue, a source change, or a normal variation in inputs. This lack of visibility makes early troubleshooting difficult.
Ingest volume insights in the Data Management Center (DMC) expose those trends immediately, giving you a way to confirm ingestion accuracy and maintain confidence in downstream results. These at-a-glance data trends empower you to detect anomalies, such as missing data or unexpected changes, so you're aware of potential issues that may affect your data pipeline.

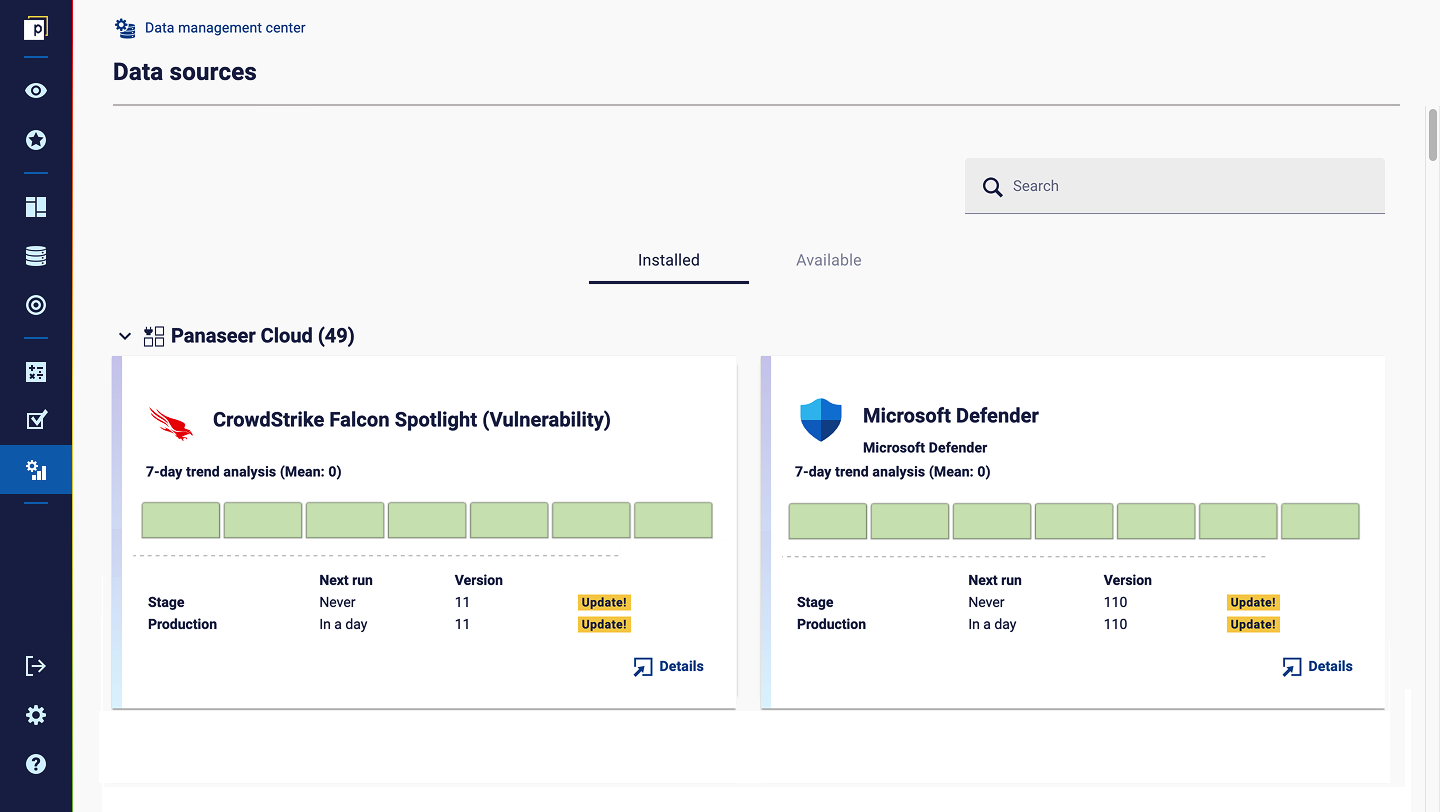

Connector health in the DMC
Quickly check data ingestion health
All stages of the Panaseer data pipeline are controlled by the Data Management Center (DMC), including data sources or connectors as they're known in the Panaseer platform.

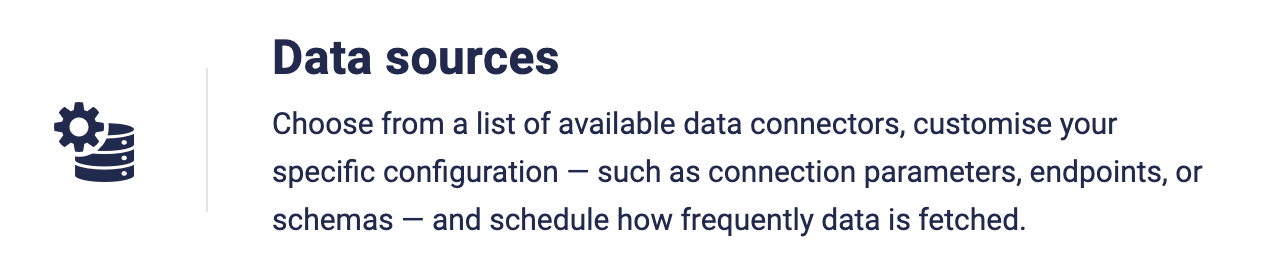

To access your connectors in Panaseer, click the DMC icon in the left-hand menubar and then select Data sources.
You can find ingest volume insights in two areas of your DMC:
- Installed connectors: Every installed connector card displays a bar chart summarizing daily volumes of raw data ingested from your security tools. Sudden drops or gaps could indicate issues that need investigation. Refer to Understanding the Charts for more details.

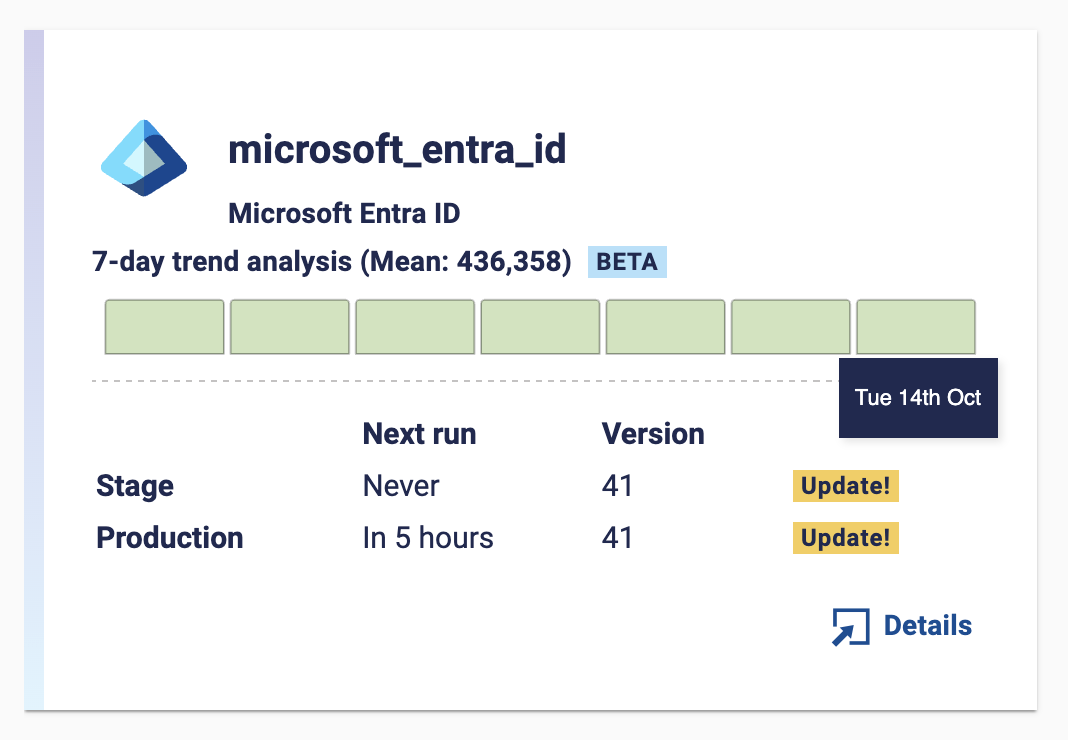

An installed connector's data ingest health
- Connector Details page: Click a connector's Details button to see which raw data tables are affected. You’ll see problem tables listed first, no need to sift through the entire set. Refer to Which of my tables are affected? for more details.
An installed connector's Details view
Understanding the charts
Each connector’s data ingest graph provides a clear visual summary of how raw data is flowing into the platform over time. The bar chart shows daily record counts aggregated across all populated raw tables for that connector, helping you quickly spot trends or anomalies.
Use the time selector to view 7-, 14-, or 30-day ranges, with data moving left to right from oldest to most recent.

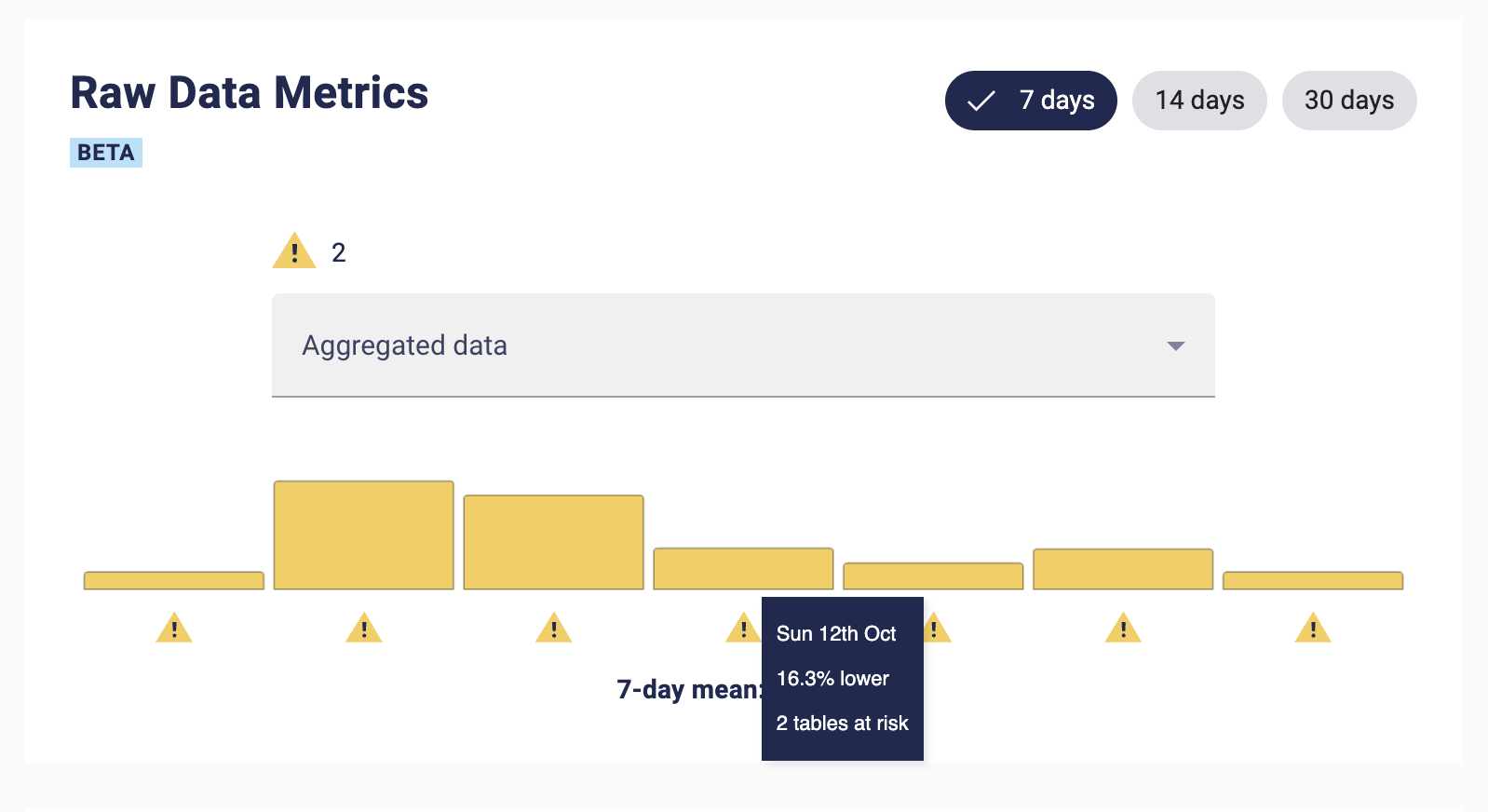

A typical data volume metrics chart
Color indicators make it easy to interpret connector health at a glance. These colors help highlight unusual patterns and may signal planned changes, maintenance, normal dips, or actual ingestion issues. Warning icons are displayed on connectors with issues or potential issues:
| Display color | Meaning | Typical causes |
|---|---|---|
|
|
Healthy – ingestion is within ±10% of mean |
|
|
|
Potential issue – >10% deviation |
|
Amber does not always indicate a fault. It highlights changes worth verifying. Contact your Panaseer representative for help with unexpected ingest variation with no known cause. | ||
|
|
Critical – no ingested data where expected |
|
Critical ingest failures for the specified day must be investigated immediately by your Panaseer representative. | ||
Which of my tables are affected?
Clicking the Details button on a connector displays an aggregate of all raw tables ingested over time. If any data is incomplete or missing, the affected tables are listed automatically at the top of the dropdown with a warning icon next to their names. Unaffected tables are listed last and don't require investigation.
The affected tables are r_wiz_io_device and r_wiz_io_vulnerabilities in the example shown.

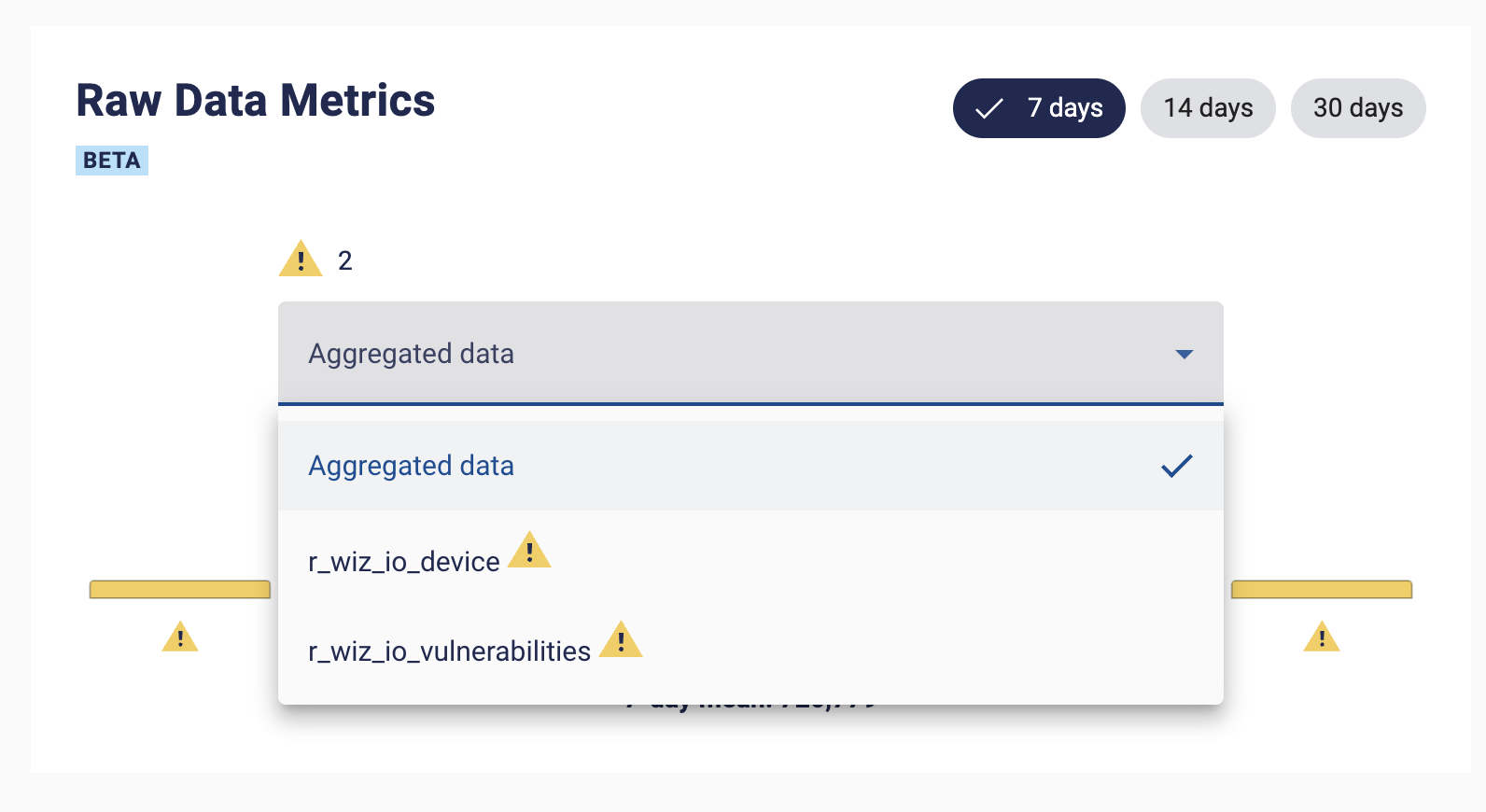

Expanded dropdown with affected tables listed first
The table list immediately identifies which tables contributed to a volume drop without searching through the entire list.
The warning icons do not always indicate a fault, they highlight changes worth verifying. Contact your Panaseer representative for help with unexpected ingest variation with no known cause.
When should I check my connector health?
Your data ingest pipelines run automatically during scheduled downtime to collect and refresh data from connected sources.
Consistent monitoring is essential to maintain accurate metrics, dashboards, and AI-powered insights. If ingest volumes drop or data fails to update, downstream analytics can quickly become outdated or misleading.
Recommended frequency
Daily as part of health check process, ideally after the daily pipeline run completes.
Weekly as part of routine system checks to identify gradual trends in ingest volumes.
After changing connector settings or source system maintenance to ensure data continues to flow as expected.
When dashboard metrics appear unusual.
This schedule ensures that pipeline failures are detected promptly, data freshness is maintained, and analysts can trust that daily reports, trends, and metric changes are based on up-to-date information.
Frequently asked questions
| Question | Answer |
|---|---|
| What do the bar colors on the connector cards mean? |
|
| Can I change the time range? | Yes. Use the selector to choose between 7, 14, or 30-day views. More granular control may be added in a future release. |
| Which way do graphs read? | Left (oldest) to right (latest). |
| What does “no data available” mean? | This message appears when the connector is newly installed or the feature was not enabled for that time range. It differs from the red indicator, which signals missing data. |
| How do I know which tables have issues? | Click the connector dropdown to display all tables used by this connector. Affected tables appear at the top with warning icons. |
| Can I customize the 10% threshold? | Not currently. Custom thresholds are planned for a future release. |
| How often do ingest charts update? | Once per day after connector runs complete. |
| Where does the data come from? | The charts display aggregated record counts across all populated raw tables ingested from security tools. |
| Can I export this data? | Not currently. Export functionality may be added in a future release. |
Troubleshooting
| Problem | What to do |
|---|---|
| I can't see any volume metric charts |
|
| The charts don't contain any data |
|
| The data looks incorrect |
|
Questions or Feedback?
Please contact your Customer Success Manager with any questions, or use our feedback form to provide feedback on this specific product feature.
